Saturday, May 17, 2014

Updated-WIP Koenigsegg Agera R 2013

So hello again. Here is another update on my recent work on my Koenigsegg Agera R 2013. As you can tell, I've changed the suspension a bit, just to make it slightly more realistic.
Koenigsegg Agera R 2013 Triplex Suspension

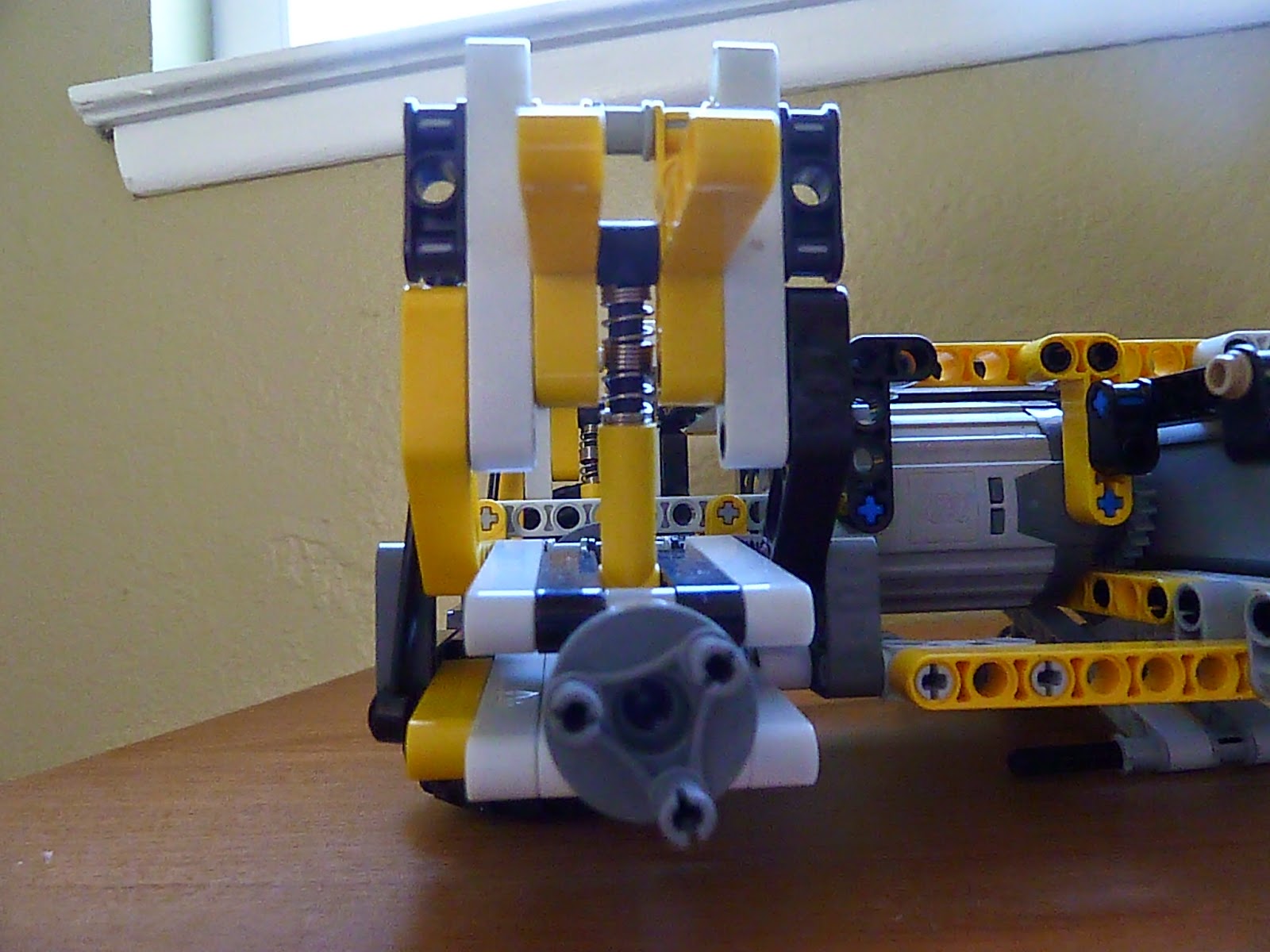

My Newly Designed Rear Suspension
New Suspension From Top

Anti-Roll Bar

As you can see, I have not yet added the anti-roll bar. I will as soon as I can and I will post it as soon as possible. The suspension did not come out to be as realistic as I would have liked. The triplex suspension did not exactly work too well. I will continue to work on the suspension and I will post new updates.

Friday, May 16, 2014

Work In Progress Koenigsegg Agera R

Hey guys. Here's a little update on what I've been building recently. So I've been working on the Koenigsegg Agera R. I have also, however, decided to make mine AWD.

Rear Axle

For the rear axle, I just decided to do a simple double wishbone independent just as in the rear car with an anti-roll bar though the Agera R doesn't have an anti-roll bar (Just for fun). I kind of cheated I guess by using LEGO hubs from the 42000 Grand Prix Racer set.

Anti-Roll Bar

Rear Axle From Top

42000 LEGO hubs

Front Axle

For the front axle, I made a simple MacPherson strut. I later discovered that it was slightly weak and unrealistic, so now, I am working on a double wishbone. I currently do not have any pictures on the front axle yet, but I will post it as soon as possible.

Thursday, May 15, 2014

Simple Truck Trial Chassis

-Front Independent
-Rear Live Axle
-RTC steering via servo motor or steering via L motor

Hey guys. So a while back I've made this little off road chassis for Truck Trial. It came out to be quite successful. Nothing complicated about it, although the CV joints did end up coming slightly loose. Other than that, everything worked alright. It is powered by two XL motors and the gear ratio is 3:5.  It goes at a decent speed and handles slopes, obstacles, and grass very well.

A Little Bonus
